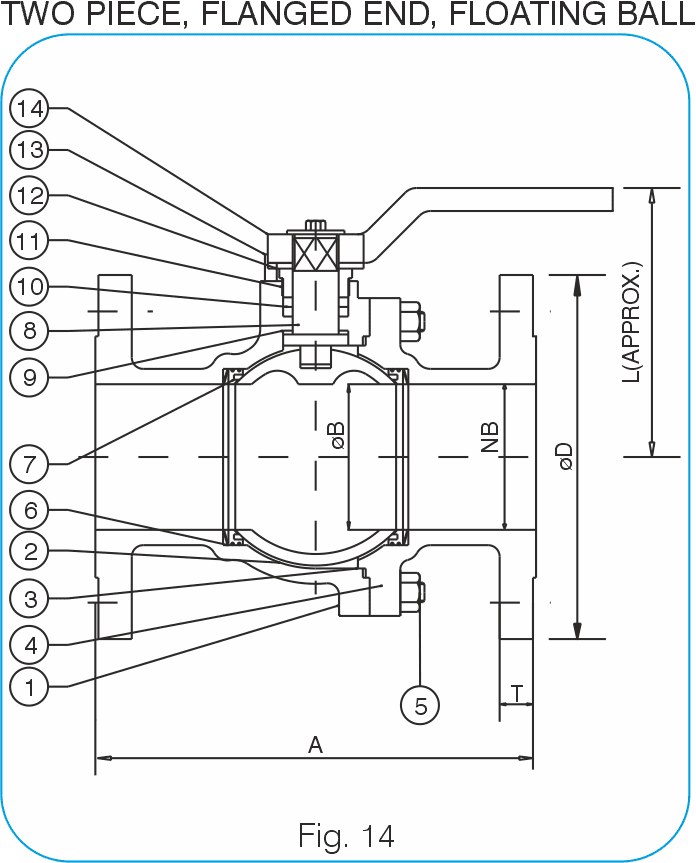

Cast Steel Floating Ball Valve
Size : ½ - 24 Inch, Pressure Class:150# ANSI CLASS Up to 2500#
| SL No. |
DESCRIPTION | MATERIAL | ||
|---|---|---|---|---|
| CARBON STEEL | STAINLESS STEEL | |||
| WCB | CF8 | CF8M | ||
| 1. | BODY | ASTM A 216 Gr. WCB | ASTM A 351Gr. CF8 | ASTM A 351Gr. CF8M |
| 2. | BALL | ASTM A Gr. 351 CF8 / CF8M / A 216 Gr. WCB (ENP) | ASTM A 351Gr. CF8 | ASTM A 351Gr. CF8M |
| 3. | GASKET | PTFE / GRAPHITE | PTFE / GRAPHITE | PTFE / GRAPHITE M |
| 4. | SIDE PIECE | ASTM A 216 Gr. WCB | ASTM A 351Gr. CF8 | ASTM A 351Gr. CF8 |
| 5. | STUDS & NUTS | ASTM A 193 Gr. B7 / A194 2H | B8 | B8 |
| 6. | DECOMPRESSION SPRING | STEEL | STEEL | STEEL |
| 7. | BALL SEAL | PTFE (VIRGIN / RE-INFORCED) | PTFE (VIRGIN / RE-INFORCED) | PTFE (VIRGIN / RE-INFORCED) |
| 8. | STEM | S.S. AISI 410 / 304 / 316 | AISI 304 | AISI 316 |
| 9. | FRICTION RING | PTFE | PTFE | PTFE |
| 10. | PACKING RING | PTFE / GRAPHITE | PTFE / GRAPHITE | PTFE / GRAPHITE |
| 11. | GLAND | S.S. AISI 410 | AISI 304 | AISI 316 |
| 12. | GLAND NUT | STEEL | AISI 304 | AISI 316 |
| 13. | INDICATOR STOP COLLAR | STEEL | ST. STEEL | ST. STEEL |
| 14. | WRENCH | MALLEABLE IRON / CARBON STEEL | ||
DESIGN FEATURES :
- MANUFACTURING STANDARD - BS : 5351 / API 6D
- FACE TO FACE AS PER ANSI B 16.10
- ENDS FLANGED & DRILLED AS PER ASME B 16.5 R.F
- TESTED AS PER BS : 6755 PAT-I
- FIRE SAFE TO API 607 / API 6 FA / BS 6755
- LOCKING ARRANGEMENT OPTIONAL.
- OPTIONAL GEAR, ELECTRIC ACTUATOR OR PNEUMATIC ACTUATOR
- METAL TO METAL SEATING OPTIONAL.
- ANTI STATIC DEVICE OPTIONAL
- REDUCED BORE VALVES AVAILABLE
- AVAILABLE IN CLASS 900# & 1500#
- AVAILABLE IN TRUNION MOUNTED DESIGN
Cast Steel Trunion Mounted Ball Valve
DESIGN FEATURES :
- MANUFACTURING STANDARD - BS : 5351 / API 6D
- FACE TO FACE AS PER ANSI B 16.10
- ENDS FLANGED & DRILLED AS PER ASME B 16.5 R.F
- TESTED AS PER BS : 6755 PAT-I
- FIRE SAFE TO API 607 / API 6 FA / BS 6755
- LOCKING ARRANGEMENT OPTIONAL.
- OPTIONAL GEAR, ELECTRIC ACTUATOR OR PNEUMATIC ACTUATOR
- METAL TO METAL SEATING OPTIONAL.
- ANTI STATIC DEVICE OPTIONAL
- REDUCED BORE VALVES AVAILABLE
- AVAILABLE IN CLASS 900# & 1500#
- AVAILABLE IN TRUNION MOUNTED DESIGN
Size : ½ - 24 Inch, Pressure Class:150# ANSI CLASS Up to 2500#
| SL No. |
DESCRIPTION | MATERIAL | ||
|---|---|---|---|---|
| CARBON STEEL | STAINLESS STEEL | |||
| WCB | CF8 | CF8M | ||
| 1. | BODY | ASTM A 216 Gr. WCB | ASTM A 351Gr. CF8 | ASTM A 351Gr. CF8M |
| 2. | BALL | ASTM A Gr. 351 CF8 / CF8M / A 216 Gr. WCB (ENP) | ASTM A 351Gr. CF8 | ASTM A 351Gr. CF8M |
| 3. | GASKET | PTFE / GRAPHITE | PTFE / GRAPHITE | PTFE / GRAPHITE M |
| 4. | SIDE PIECE | ASTM A 216 Gr. WCB | ASTM A 351Gr. CF8 | ASTM A 351Gr. CF8 |
| 5. | STUDS & NUTS | ASTM A 193 Gr. B7 / A194 2H | B8 | B8 |
| 6. | DECOMPRESSION SPRING | STEEL | STEEL | STEEL |
| 7. | BALL SEAL | PTFE (VIRGIN / RE-INFORCED) | PTFE (VIRGIN / RE-INFORCED) | PTFE (VIRGIN / RE-INFORCED) |
| 8. | STEM | S.S. AISI 410 / 304 / 316 | AISI 304 | AISI 316 |
| 9. | FRICTION RING | PTFE | PTFE | PTFE |
| 10. | PACKING RING | PTFE / GRAPHITE | PTFE / GRAPHITE | PTFE / GRAPHITE |
| 11. | GLAND | S.S. AISI 410 | AISI 304 | AISI 316 |
| 12. | GLAND NUT | STEEL | AISI 304 | AISI 316 |
| 13. | INDICATOR STOP COLLAR | STEEL | ST. STEEL | ST. STEEL |
| 14. | GEAR BOX | CARBON STEEL | ||
Forged Steel Ball Valve
Size : ½ - 24 Inch, Pressure Class:150# ANSI CLASS Up to 2500#
| SL No. |
DESCRIPTION | MATERIAL | ||
|---|---|---|---|---|
| CARBON STEEL | STAINLESS STEEL | |||
| A 105 | F-304 | F-316 | ||
| 1. | BODY | ASTM A 105 | ASTM A 182Gr. F-304 | ASTM A 182Gr. F-316 |
| 2. | BALL | SS 304 / SS 316 | ASTM A 182Gr. F-304 | ASTM A 182Gr. F-316 |
| 3. | GASKET | PTFE | PTFE | PTFE |
| 4. | SIDE PIECE | ASTM A 105 | ASTM A 182Gr. F-304 | ASTM A 182Gr. F-316 |
| 5. | STUDS & NUTS | ASTM A 193 Gr. B7 / A194 2H | B8 | B8M |
| 6. | BALL SEAL | PTFE (VIRGIN / RE-INFORCED) | PTFE (VIRGIN / RE-INFORCED) | |
| 7. | STEM | S.S. AISI 410 / 304 / 316 | AISI 304 | AISI 316 |
| 8. | FRICTION RING | PTFE | PTFE | AISI 316 |
| 9. | PACKING RING | PTFE / GRAPHITE | PTFE | PTFE |
| 10. | GLAND | S.S. AISI 410 | AISI 304 | PTFE |
| 11. | GLAND NUT | STEEL | AISI 304 | AISI 304 |
| .12. | WRENCH | MALLEABLE IRON / CARBON STEEL | AISI 316 | |
DESIGN FEATURES :
- MANUFACTURING STANDARD - BS : 5351 / API 6D
- FACE TO FACE AS PER ANSI B 16.10
- ENDS FLANGED & DRILLED AS PER ASME B 16.5 R.F
- TESTED AS PER BS : 6755 PAT-I
- FIRE SAFE TO API 607 / API 6 FA / BS 6755
- LOCKING ARRANGEMENT OPTIONAL.
- OPTIONAL GEAR, ELECTRIC ACTUATOR OR PNEUMATIC ACTUATOR
- METAL TO METAL SEATING OPTIONAL.
- ANTI STATIC DEVICE OPTIONAL
- REDUCED BORE VALVES AVAILABLE
- AVAILABLE IN CLASS 900# & 1500#
- AVAILABLE IN TRUNION MOUNTED DESIGN
Pneumatic Operated Ball Valve
Size : ½ - 24 Inch, Pressure Class:150# ANSI CLASS Up to 2500#
Type of Pneumatic Acutator : Single Acting, Spring Return/Double Acting,
Rack and Pinion Type.
Housing Material : Aluminum Anodised Body
Technical Data :
Medium temp : -10 F ~+180 F
Ambient temp : -10 F ~+60 F
Air Signal Pressure : 3.5 to 8 kg/cm
Control Medium : Neutral, Non aggressive Gases, Air
Air Connection : 1/8” BSP
Actuation Time : 1-2 seconds
Actuation Angle : 90
Accessories :
A) Pnuematic Positioner
B) Electro Pnuematic Positioner
C) Filter Regulators Lubricators with Pressure Guage
D) Limit Switches
E) Solenoid Valves (3 & 4 ways) Supply 230 V AC, 50 c/s AC or 24 V
